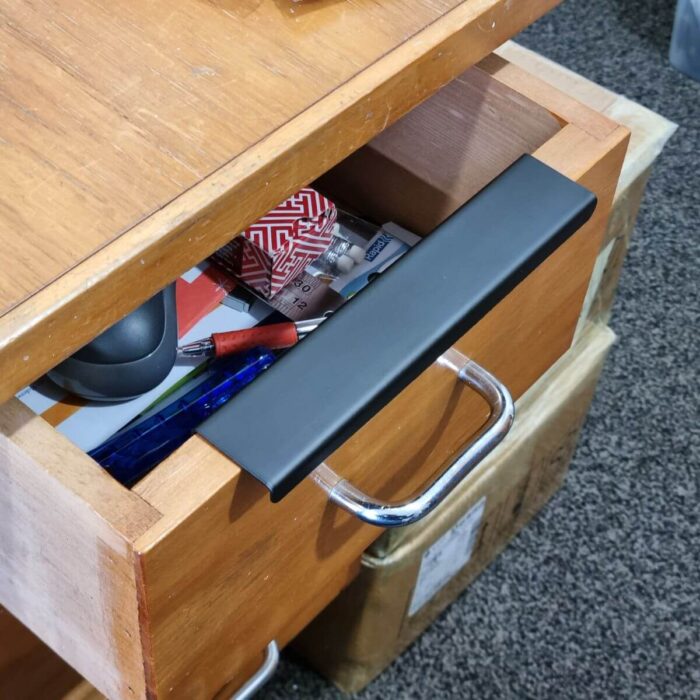

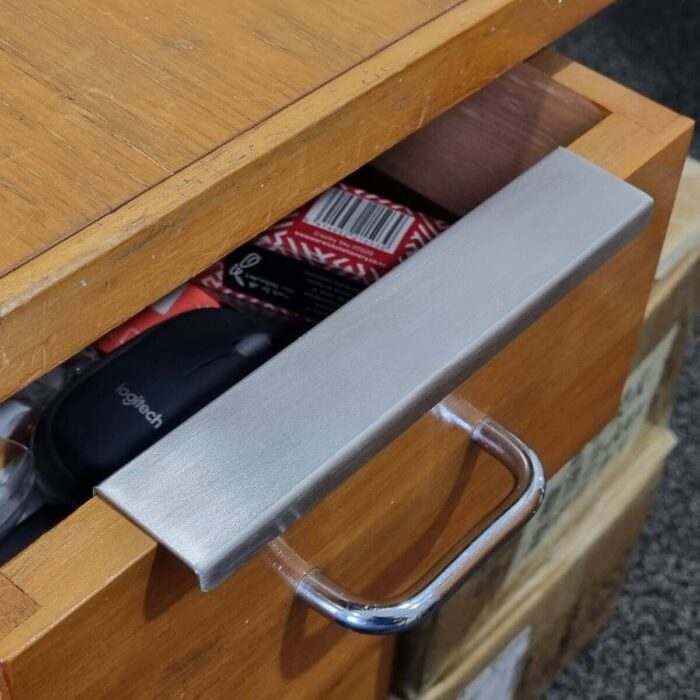

Concealed edge pulls provide a clean and modern look to your kitchen and furniture. These units are designed to be mostly hidden from view, except for a ‘lip’ which allows for cupboards and drawers to be opened with the tips of your fingers. Because of this design, these handles are best suited for lightweight applications so as to reduce the strain on your fingertips (kitchen cupboard doors, drawers that use runners etc).
Features:
- Made from 1mm thick 304 stainless steel resulting in a handle that is both heavy and strong.

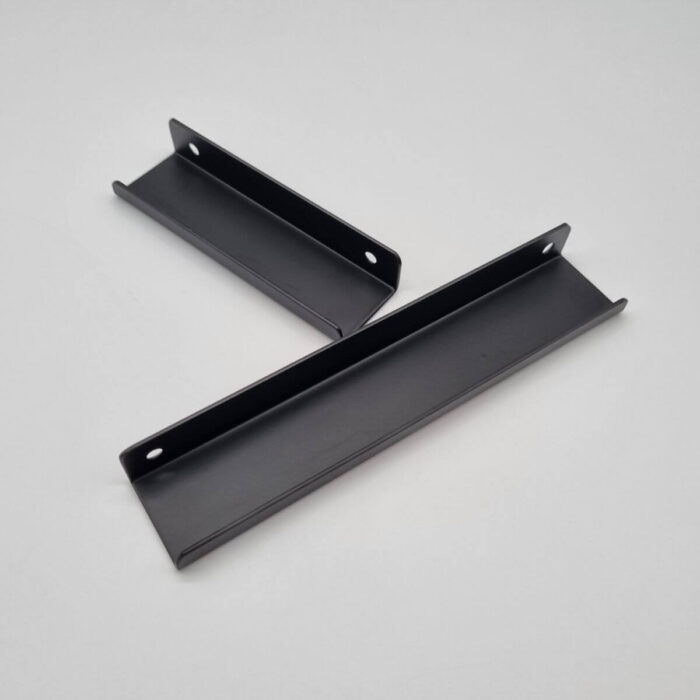

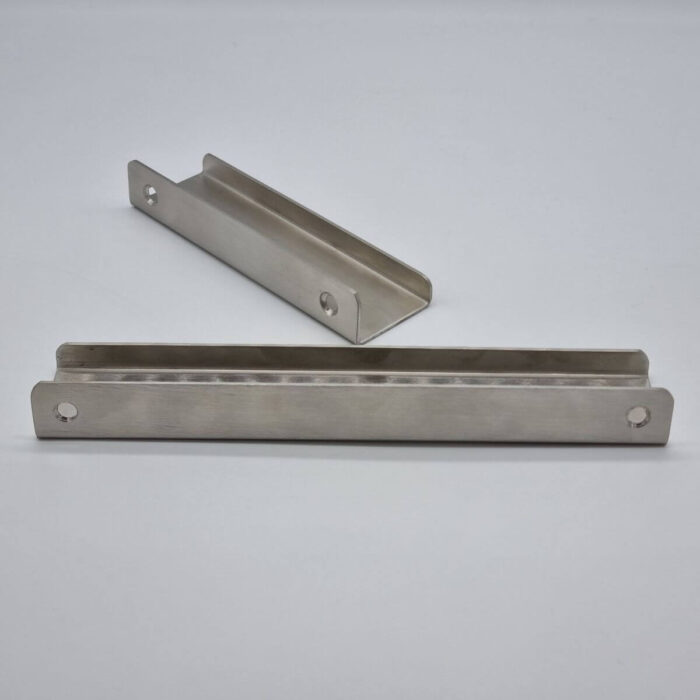

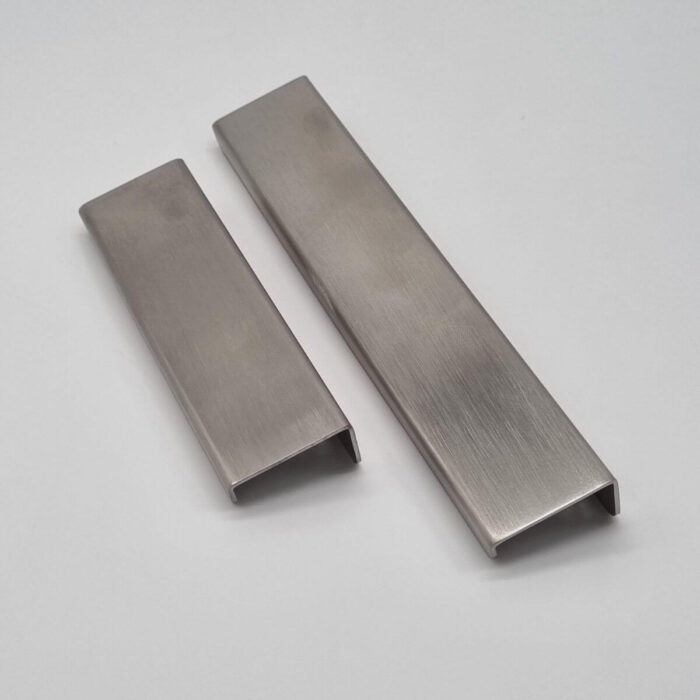

- Available in two different lengths.

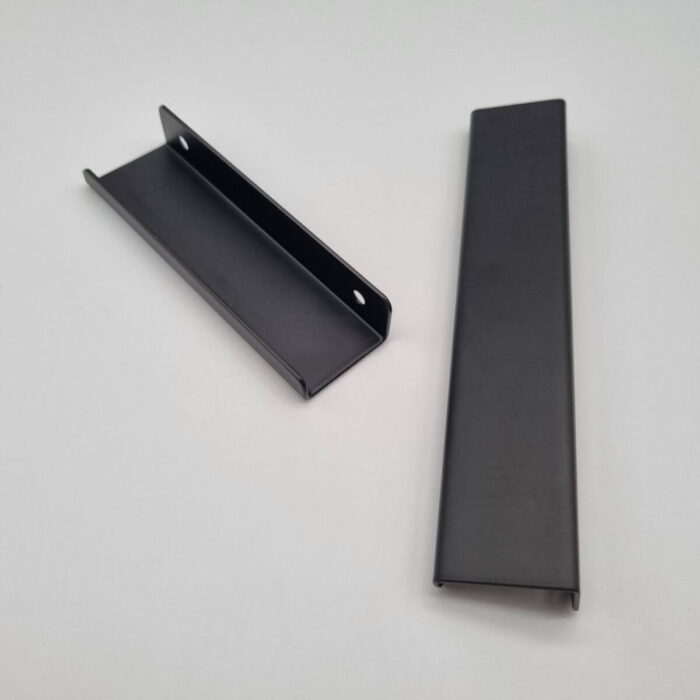

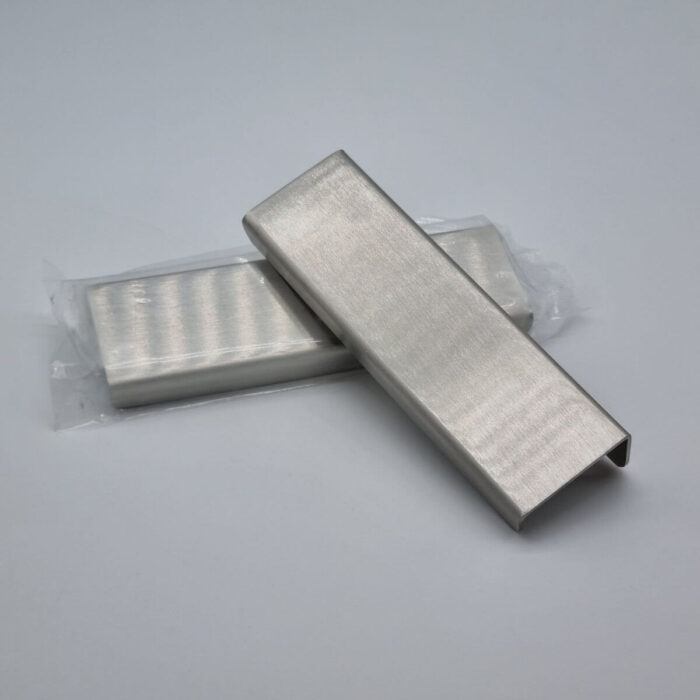

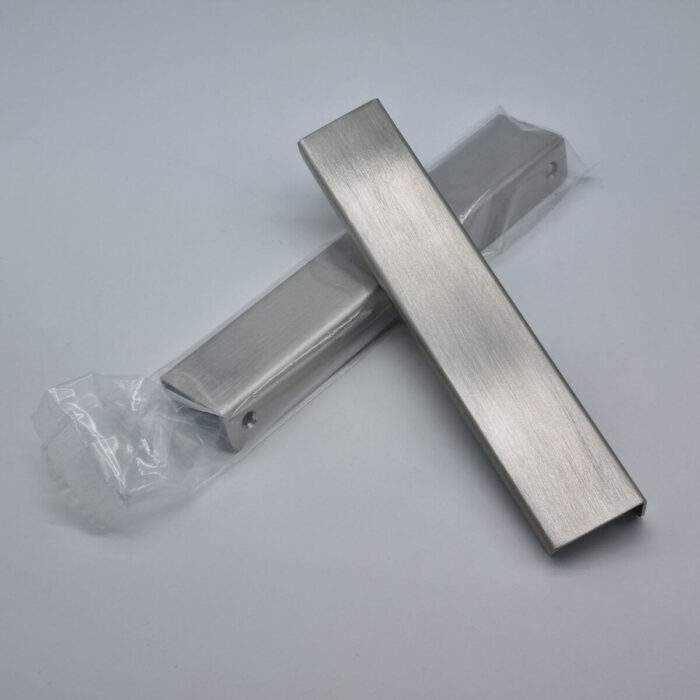

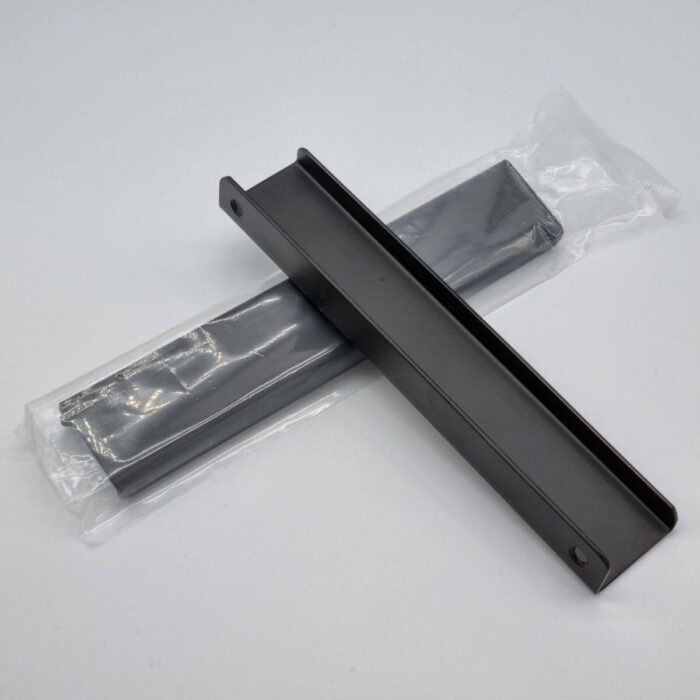

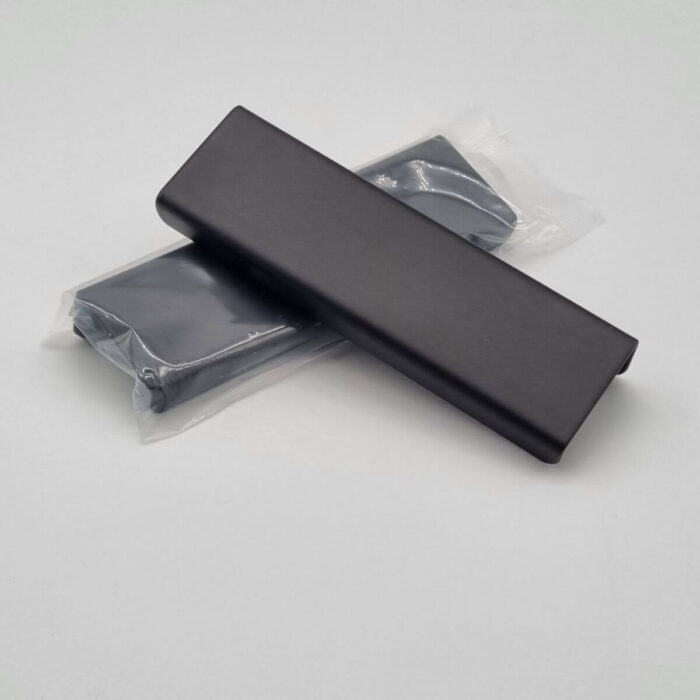

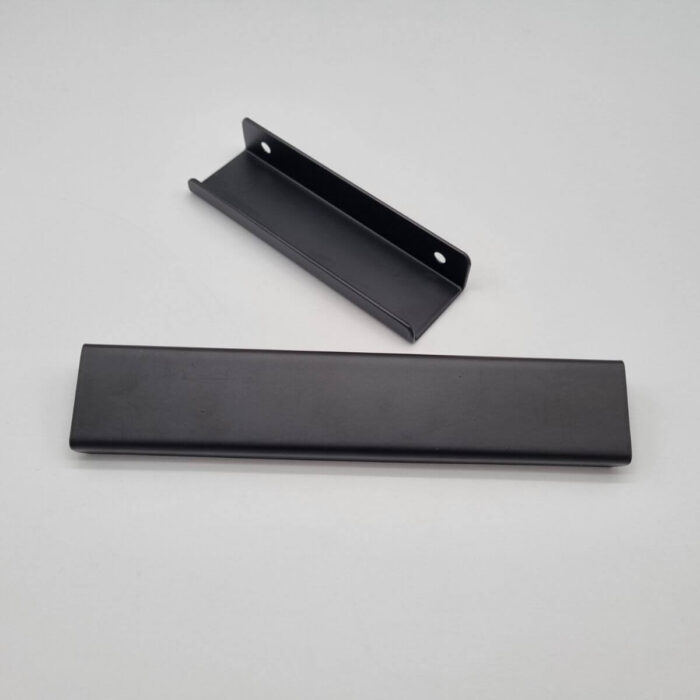

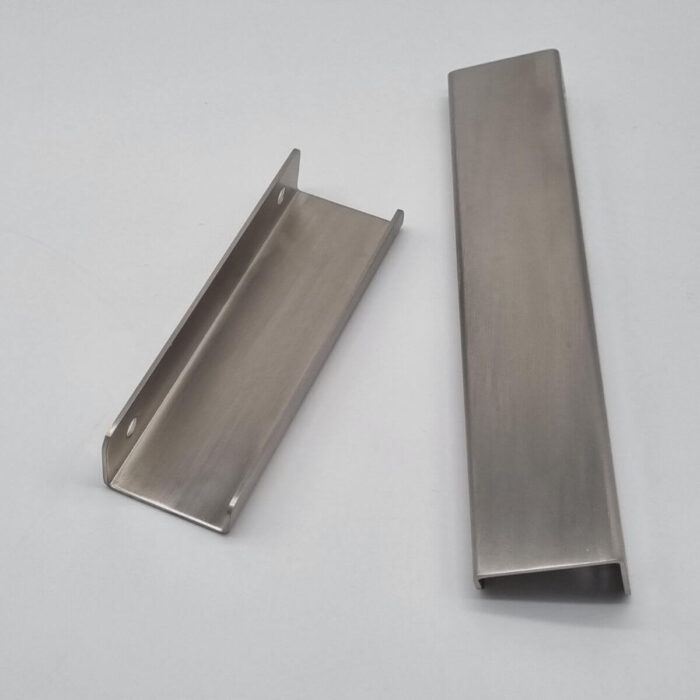

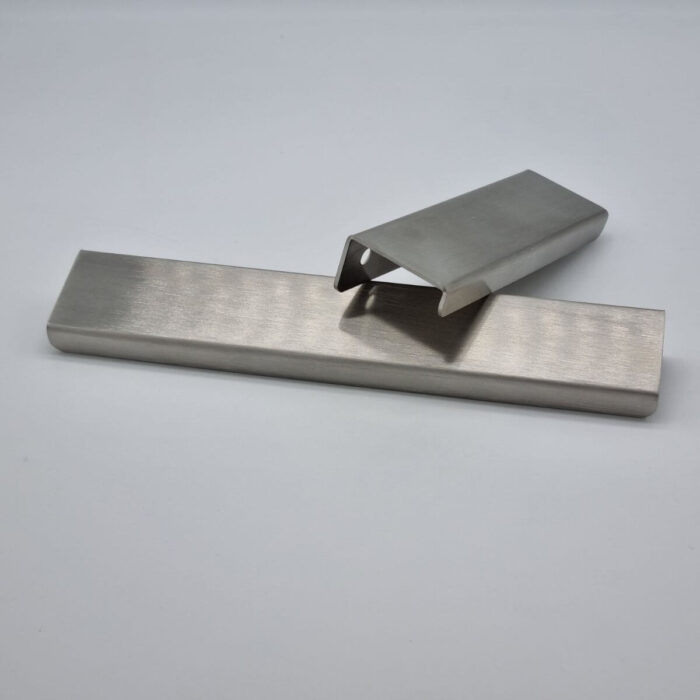

- Available in either matte black or brushed stainless.
- Suitable for drawer/cupboard panels up to 20mm thick.
- Comes with the required fixings.
Specifications & Dimensions:​
Material: 304Â stainless steel.
Finish:Â Matte black, brushed stainless.
Length: Varies depending on the size chosen.
Projection: Depends on the thickness of the panel/drawer that the handle is installed on (see 'Important Information' below).
CC: Varies depending on the size chosen. (CC = the distance between the center of each fixing hole).
Lip Overhang: 10mm (this is the measurement for the front part of the lip pull, which your fingers pull on).
Lip Overhang (Usable): 9mm (this is the measurement for the usable amount of lip overhang, considering that the lip pull is made from 1mm thick stainless steel).Â

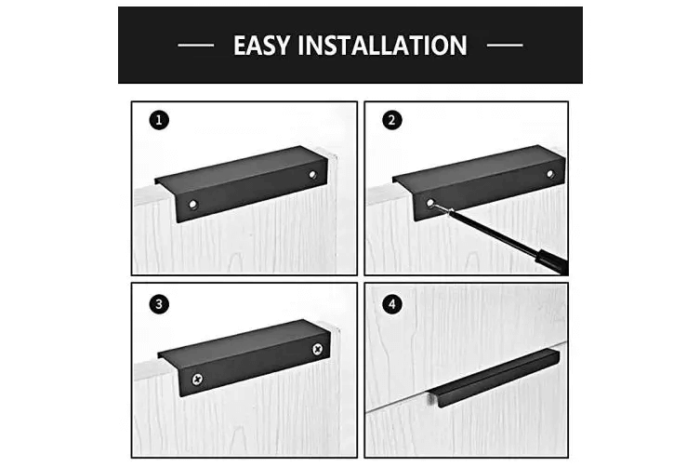

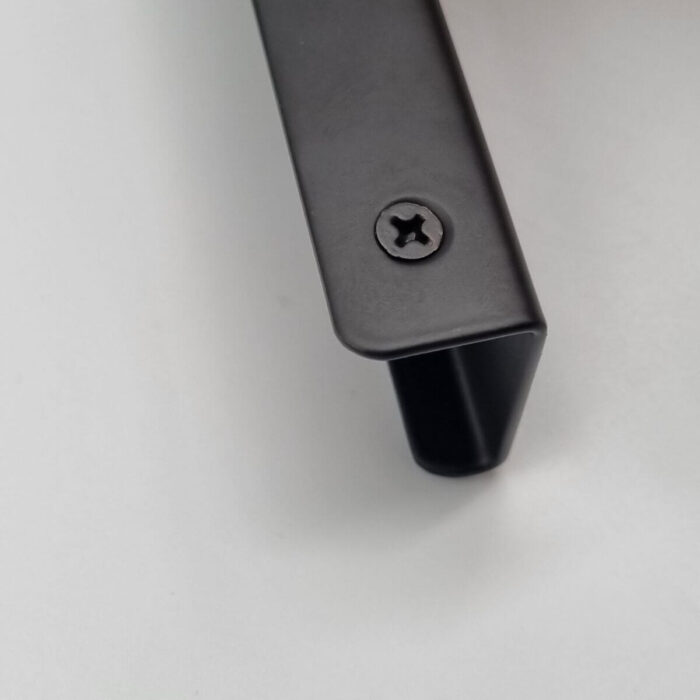

Fastener(s) Required: 2 x wood screws per lip pull (screws are included by default).
Sizes Available:​
Note the following: CC (center to center) = distance between the center of each hole. Length = the total length of the handle from one end to the other.
- CC = 90mm, Length = 116mm.
- CC = 160mm, Length = 180mm.
Important Information:​

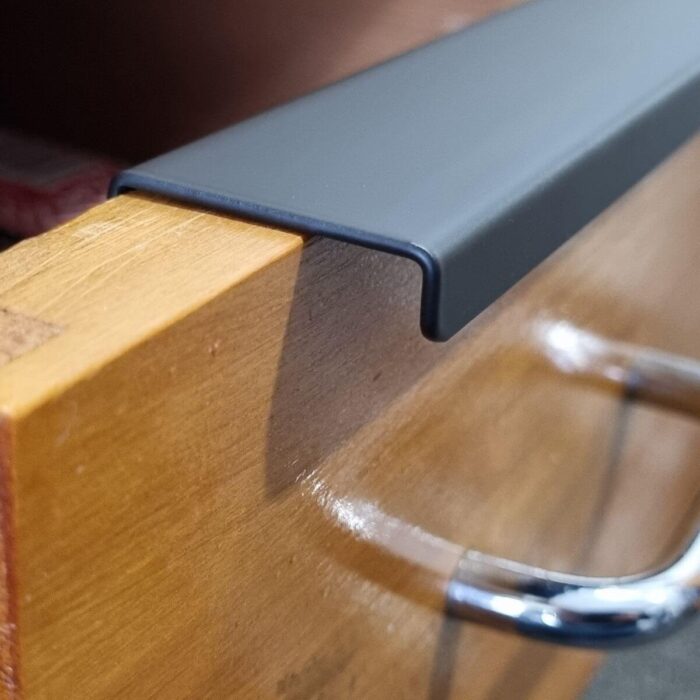

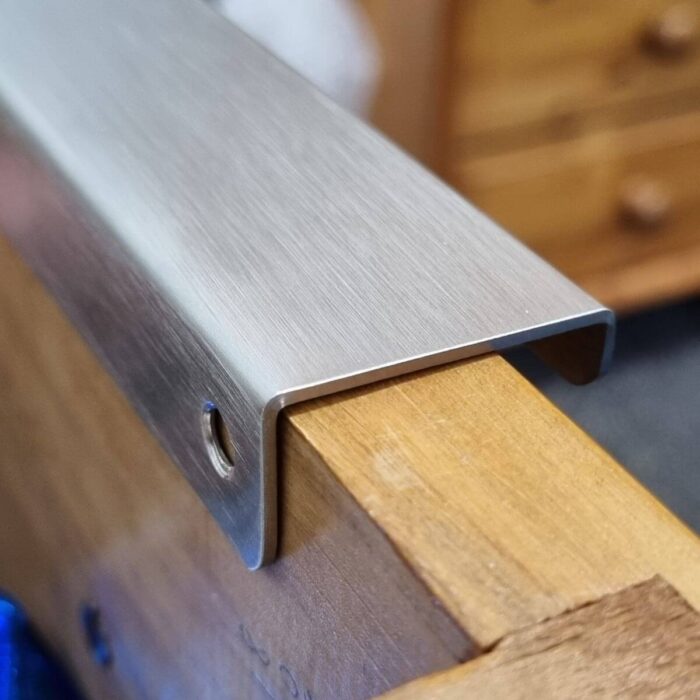

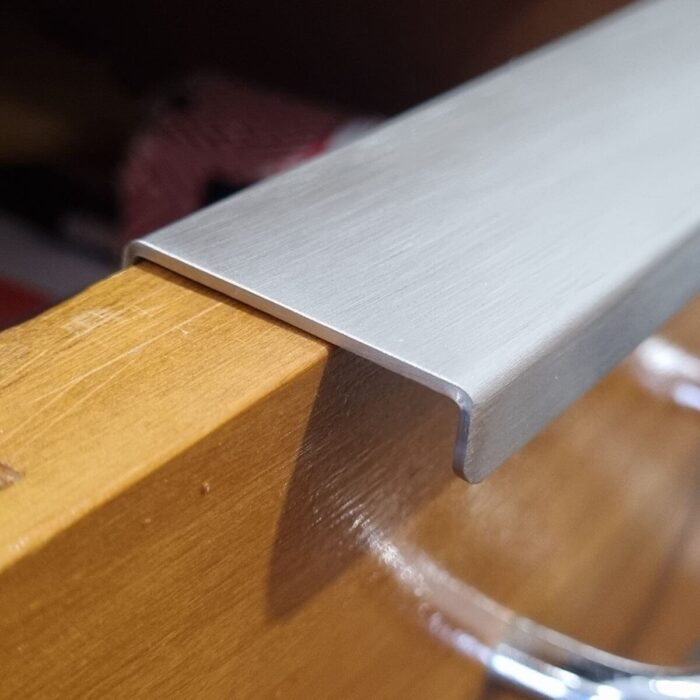

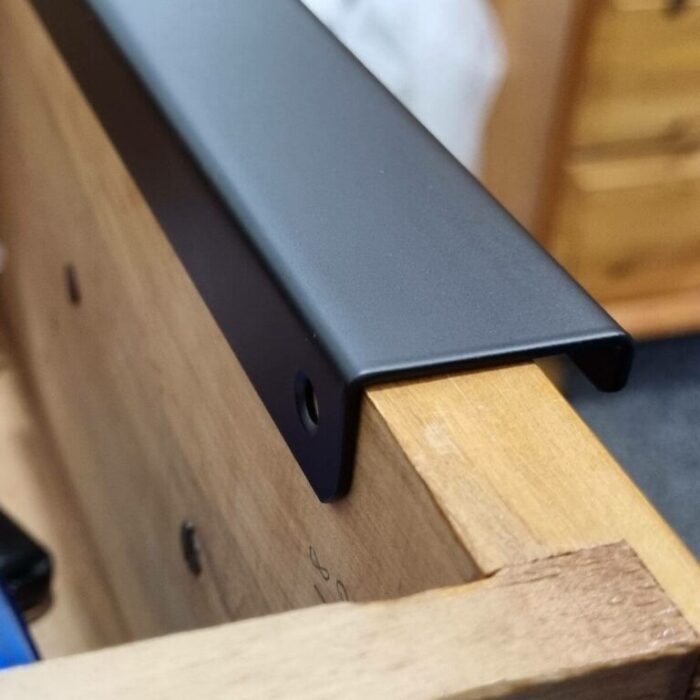

Important Information Regarding Handle Projection:Â Projection refers to how far out the handle sits when fixed in placed. This is also often referred to as the depth. The projection of the handle will change depending on how thick the panel is that the handle is installed on. This design has a width of 35mm. This means that a wooden panel with a thickness of 20mm will result in a handle projection of 14mm (it is 14mm and not 15mm because the pulls are made from 1mm thick stainless steel).
Other Relevant Information: The current stock is made from 304 stainless steel. The previous stock was made from 201 stainless steel. 304 is a better grade overall.
Warranty:
Structural: 5 years.
Finish: 2 years.
